Monolithic Refractories

SS & SC Series

SSAP : It is a silica castable with excellent acid resistance, and it can be widely used for applications such as refractory lining, furnace roofs, waste gas ducts, and ducts.

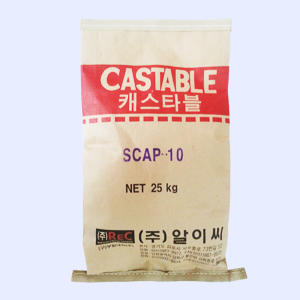

SCAP : It is a clay castable with high resistance to high temperatures and strong chemical resistance to various acid gases and liquids. It has excellent abrasion resistance, making it suitable for use in gas cooling towers, scrubbers, and other similar applications.
SLC : It is an acid-resistant castable made of alumina, which has excellent resistance to acid solutions or gases, high thermal stability, and excellent abrasion resistance.
Item＼Product SSAP-50 SSAP-80 SCAP-90 SCAP-10 SLC-AP12
Maximum Service Temperature(℃) 500 800 900 1100 1200
Dry Material Required for Estimating(t/㎥) 1900 1900 1850 1900 2100
Permanent Linear Change(%) 110℃×24hrs -0.50 -0.30 -0.10 -0.10 -0.20
℃×3hrs - - -0.20 -0.20 -0.30
Cold Crushing Strength(N/㎟) 110℃ × 24hrs 150(40) 80(20) 100(25) 150(30) 200(50)
℃ × 3hrs 200(50) 70(20) 150(30) 90(20) 250(70)
Chemical Composition(%) Al₂O₃ - - - - 45
SiO₂ 75 70 65 60 50
Water Required(%) - 14~20 - 14~18 -
Setting Type Air Setting Hydraulic Air Setting Hydraulic Air Setting
Installation Method Casting, Trowlling, Gunning
Main applications Refractory lining, furnace roofs, ducts,
acid tanks,
and channels		 Scrubbers, cooling towers,
Ducts,
STACK		 cooling towers,
Ducts,
STACK		 cooling towers,
Ducts,
STACK		 Incinerators,
annealing furnaces,
Scrubbers
