Monolithic Refractories
Item\Product | Special Insulating | ||||
---|---|---|---|---|---|

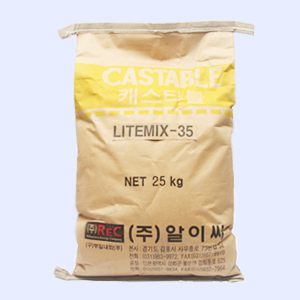

LITEMIX-35 | LITEMIX-45 | LITEMIX-55 | LITEMIX-65 | ||
Maximum Service Temperature(℃) | 1000 | 1000 | 1100 | 1100 | |
Dry Material Required for Estimating(t/㎥) | 0.35 | 0.45 | 0.55 | 0.65 | |
Permanent Linear Change(%) | 110℃×24h | -0.12 | -0.12 | -0.06 | -0.06 |
500℃×3h | -0.80 | -0.60 | -0.50 | -0.40 | |
800℃×3h | -1.81 | -1.50 | -1.20 | -0.80 | |
Cold Crushing Strength(N/㎟) | 110℃×24h | 0.29~1.47 | 0.49~1.96 | 0.98~2.94 | 1.47~3.43 |
500℃×3h | - | - | - | - | |
800℃×3h | 0.09~0.98 | 0.29~1.47 | 0.29~1.47 | 0.49~1.96 | |
Thermal Conductivity(Kcal/m) | 250℃ | 0.09 | 0.12 | 0.14 | 0.15 |
550℃ | 0.11 | 0.13 | 0.14 | 0.16 | |
800℃ | 0.12 | 0.14 | 0.16 | 0.17 | |
1000℃ | - | - | - | - | |
Chemical Composition(%) | Al₂O₃ | - | - | - | - |
SiO₂ | - | - | - | - | |
Water Required(%) | 150 | 120 | 100 | 80 | |
Setting Type | Hydraulic | ||||
Installation Method | Trowlling | ||||
Packaging | 10kg, 25kg |
